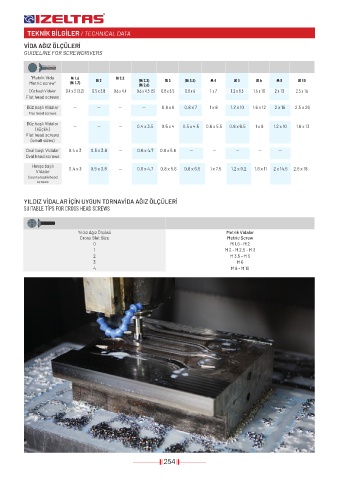

TEKNİK BİLGİLER / TECHNICAL DATA

VİDA AĞIZ ÖLÇÜLERİ
GUIDELINE FOR SCREWDRIVERS

"Metrik Vida M 1.6 M 2.3
Metric screw" (M 1.7) M 2 (M 2.3) M 3 (M 3.5) M 4 M 5 M 6 M 8 M 10
(M 2.6)
Düz başlı Vidalar 0.4 x 3 (3.2) 0.5 x 3.8 0.6 x 4.4 0.6 x 4.5 (5) 0.8 x 5.5 0.8 x 6 1 x 7 1.2 x 8.5 1.6 x 10 2 x 13 2.5 x 16
Flat head screws
Düz başlı Vidalar — — — — 0.8 x 6 0.8 x 7 1 x 8 1.2 x 10 1.6 x 12 2 x 16 2.5 x 20
Flat head screws
Düz başlı Vidalar — — — 0.4 x 3.5 0.5 x 4 0.5 x 4.5 0.6 x 5.5 0.8 x 6.5 1 x 8 1.2 x 10 1.6 x 13
(küçük)
Flat head screws
(small sizes)
Oval başlı Vidalar 0.4 x 3 0.5 x 3.8 — 0.6 x 4.7 0.8 x 5.6 — — — — —
Oval head screws
Havşa başlı 0.4 x 3 0.5 x 3.8 — 0.6 x 4.7 0.8 x 5.6 0.8 x 6.5 1 x 7.5 1.2 x 9.2 1.6 x 11 2 x 14.5 2.5 x 18
Vidalar
Countersank head
screws
6
YILDIZ VİDALAR İÇİN UYGUN TORNAVİDA AĞIZ ÖLÇÜLERİ
SUITABLE TİPS FOR CROSS HEAD SCREWS

Yıldız Ağız Ölçüsü Metrik Vidalar
Cross Slot Size Metric Screw
0 M 1.6 - M 2
1 M 2 - M 2.5 - M 3
2 M 3.5 - M 5
3 M 6
4 M 8 - M 10
